Weak-Grid & Power-Constrained Sites

Buffer limited or intermittent input, then deliver controlled power when the site requires a higher output.

Discuss this application
Site input limits

Separate limited energy intake from high-power discharge.

Storage separates the timing of energy intake from the timing of discharge. Projects can be discussed around grid, generator or renewable input, while the output side is configured for the target equipment and operating profile.

G186120Z200120G1000480
Typical applications
  • Limited-grid facilities
  • Rural operating sites
  • Distributed energy systems
  • Power-constrained parking areas
Application views

Power-constrained site examples

Weak-Grid & Power-Constrained Sites operating scene
Site with limited electrical input

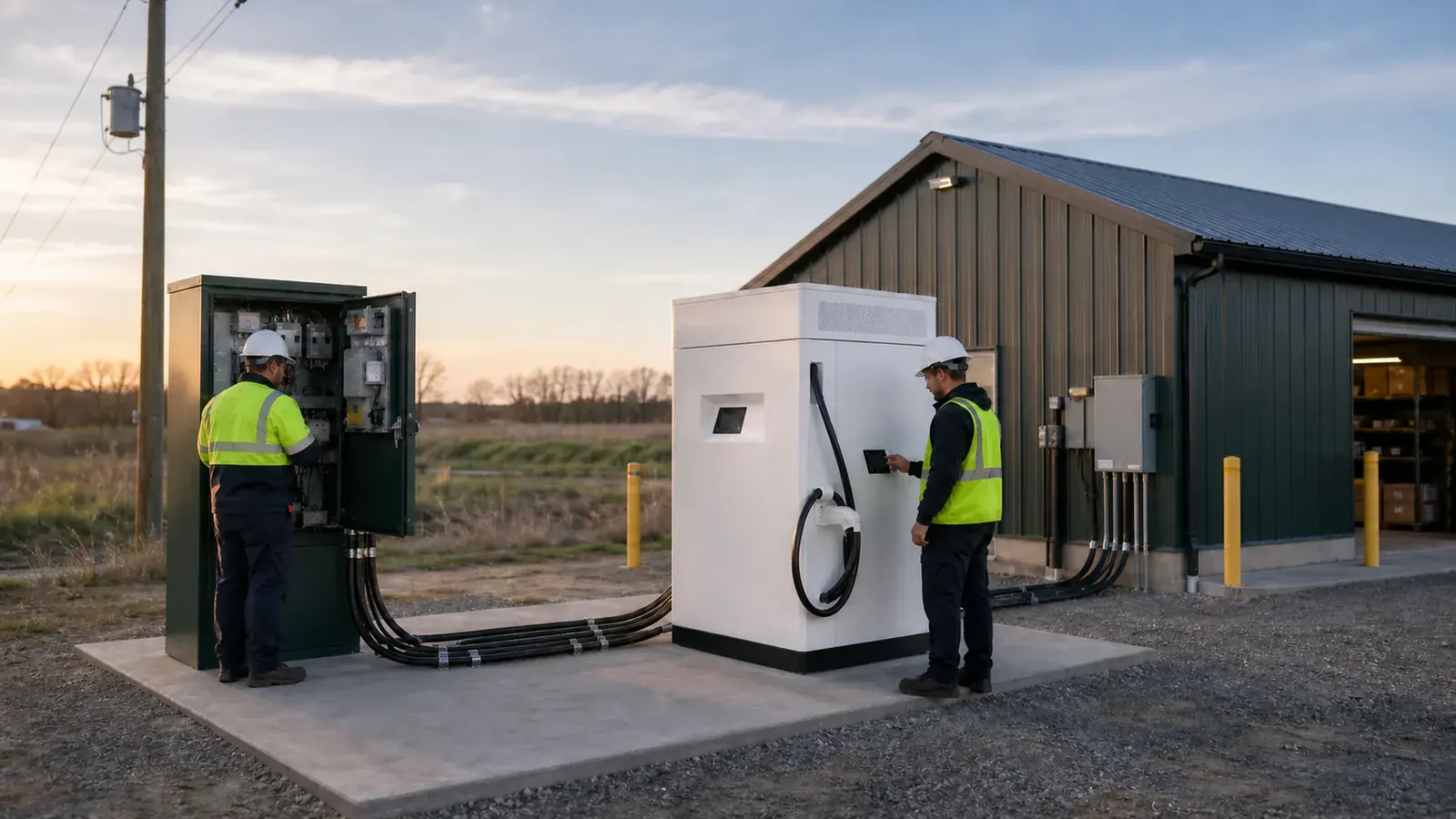

Weak-Grid & Power-Constrained Sites equipment deployment
Stored-energy charging deployment
Sizing sequence

Size storage from the available input and the load profile.

01

Accept the available site input

02

Store energy under BMS control

03

Manage conversion and discharge

04

Supply the approved site demand

Project inputs

Electrical data required for a weak-grid quotation

Project FAQ

Size the application before selecting equipment.

Use these questions to prepare a technically useful quotation request.

What information is needed to plan weak-grid sites?

Start with input voltage and frequency, recharge window, output load profile, climate and enclosure requirements. These inputs determine the required power, usable energy, recharge window, interface and operating method before a model is proposed.

Which MAINERAY-selected equipment can support this application?

G186120, Z200120, G1000480 are the initial equipment families to review. The final choice depends on the vehicle or load, available input, required runtime, transport route and destination-market requirements.

How are power, energy and recharge time sized?

Power in kW must cover the highest simultaneous load, while usable energy in kWh must cover the operating period. Recharge input and the available recharge window are then checked so the system can repeat the required duty cycle.
