Large public charging hubs
Large multi-bay hubs and heavy commercial depots
Fixed EV charging

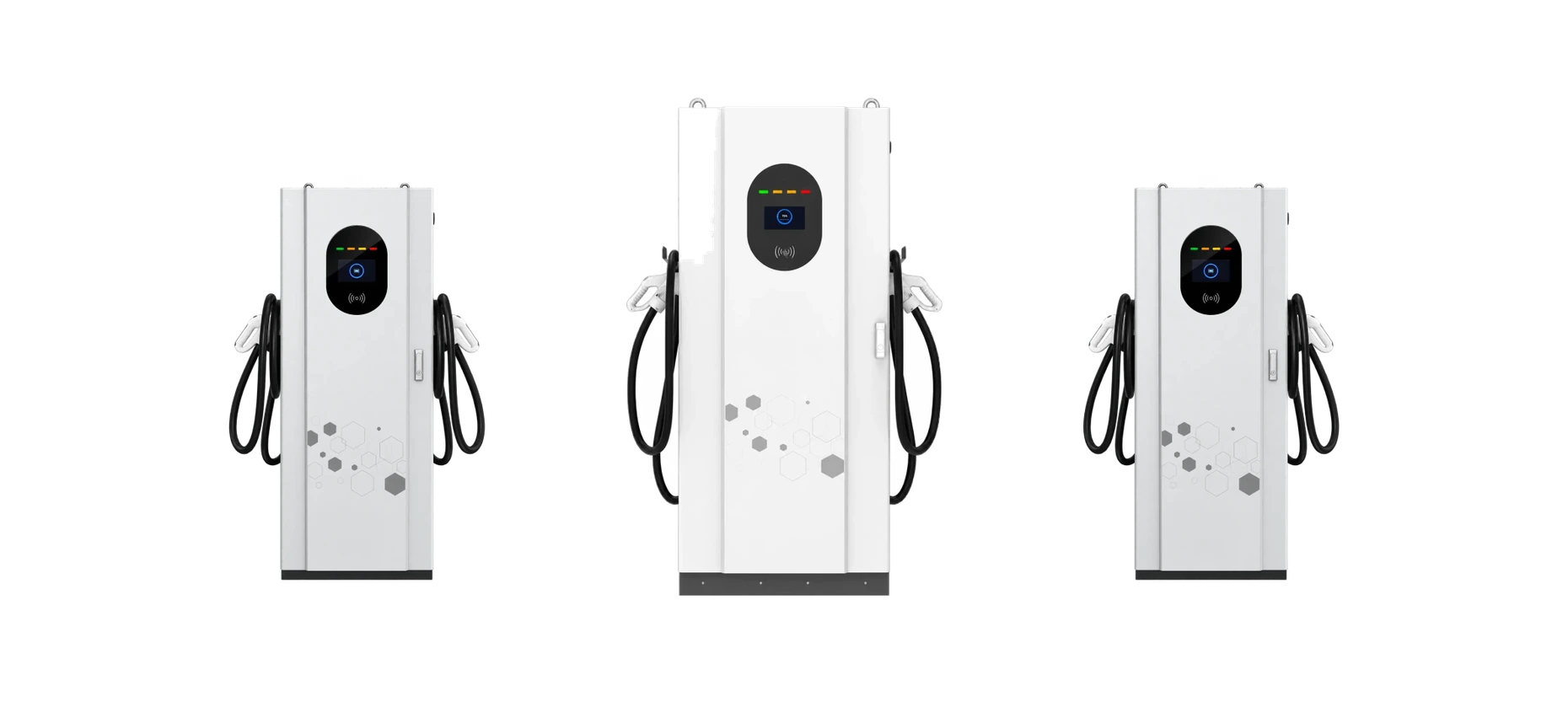

INTEK-DC 240‑1080KW Split System Split DC Charging System
240–1080 kW split dc charging system for Large public charging hubs, Bus and commercial vehicle depots, Ports and logistics terminals. Compare models, connectors, payment, OCPP and project requirements.
Rated output240–1080 kW
ApplicationsLarge public charging hubs · Bus and commercial vehicle depots
Output voltage200–1000 Vdc
Product familyINTEK-DC 240–1080KW Split System
Applications
Where this charger range fits
Centralized power cabinets and multiple dispensers for large charging hubs that need scalable output and flexible bay allocation.
- Large public charging hubs
- Bus and commercial vehicle depots
- Ports and logistics terminals
- Multi-bay highway stations
Confirm these items before quotation
- Confirm voltage, available capacity, transformer margin and any planned PV or battery connection.
- List vehicle voltage, connector, daily mileage, arrival pattern and the time available for charging.
- Confirm public or private access, payment, OCPP platform, API, branding and service responsibilities.
- Technical values follow the supplied product catalog. Ambiguous fields are marked for confirmation rather than guessed.
Applications
Charging solutions by operating site.
Match the charger family to how vehicles arrive, how long they stay and how the site will operate the equipment.
Bus and commercial vehicle depots
Use a split system when one power cabinet must allocate output across several dispensers.
Ports and logistics terminals
Large multi-bay hubs and heavy commercial depots
Multi-bay highway stations
Use a split system when one power cabinet must allocate output across several dispensers.
Operations & integration
Payment, platform and project configuration
Select the operating method together with the hardware, not after installation.
- QR or POS payment versions can be configured. MAINERAY can assist with local operator-platform connection and project API integration.
- Appearance and configuration customization
- 1–2 year warranty by model, configuration and contract
- Remote after-sales support; project-specific on-site service when required
Technical data
INTEK-DC 240–1080KW Split System · 240–1080 kW
Technical values follow the supplied product catalog. Ambiguous fields are marked for confirmation rather than guessed.
| Rated system output | 240–1080 kW |
|---|---|
| Project input | Confirm before quotation; source catalog field requires technical verification |
| Output voltage | 200–1000 Vdc |
| Connector | 7 / 8 connector configurations |
| Charging interface | CCS1 / CCS2 / GB/T project options |
| Authentication / payment | Card / QR / POS project options |
| Communication | RJ45 / 4G; platform and API integration available |
| Display | 7-inch screen |
| Protection | IP54 |
| Noise | <75 dB |
| Operating temperature | -20°C to 50°C |
| Storage temperature | -20°C to 70°C |
| Cable length | 5 m |
| Installation | Floor-mounted |
Operations & integration240–1080 kWConnectors: 7 / 8 connector configurations · 200–1000 VdcQR or POS payment versions can be configured. MAINERAY can assist with local operator-platform connection and project API integration.Appearance and configuration customization
FAQ
Questions to resolve before specifying this charger
Which sites are a good fit for INTEK-DC 240–1080KW Split System?
This 240–1080 kW family is positioned for Large public charging hubs, Bus and commercial vehicle depots, Ports and logistics terminals, Multi-bay highway stations. Final sizing depends on vehicle demand, dwell time, simultaneous charging and available site power.
Which connectors, payment methods and platforms are available?
Connector, card, QR or POS payment and platform options are configured by project. Confirm the destination market, vehicle standard, OCPP or API requirement and payment route before quotation.
How are certification and warranty confirmed?
The applicable certificate holder, model scope, delivered branding and documentation are matched to the final configuration. Warranty is normally 1–2 years depending on model, configuration and contract.
MAINERAY
Documentation follows the delivered configuration.
Technical values follow the supplied product catalog. Ambiguous fields are marked for confirmation rather than guessed.
Final branding, certification scope, platform integration and warranty are confirmed for each order.
