Residential parking
Homes, workplaces, hotels and long-stay parking
Fixed EV charging

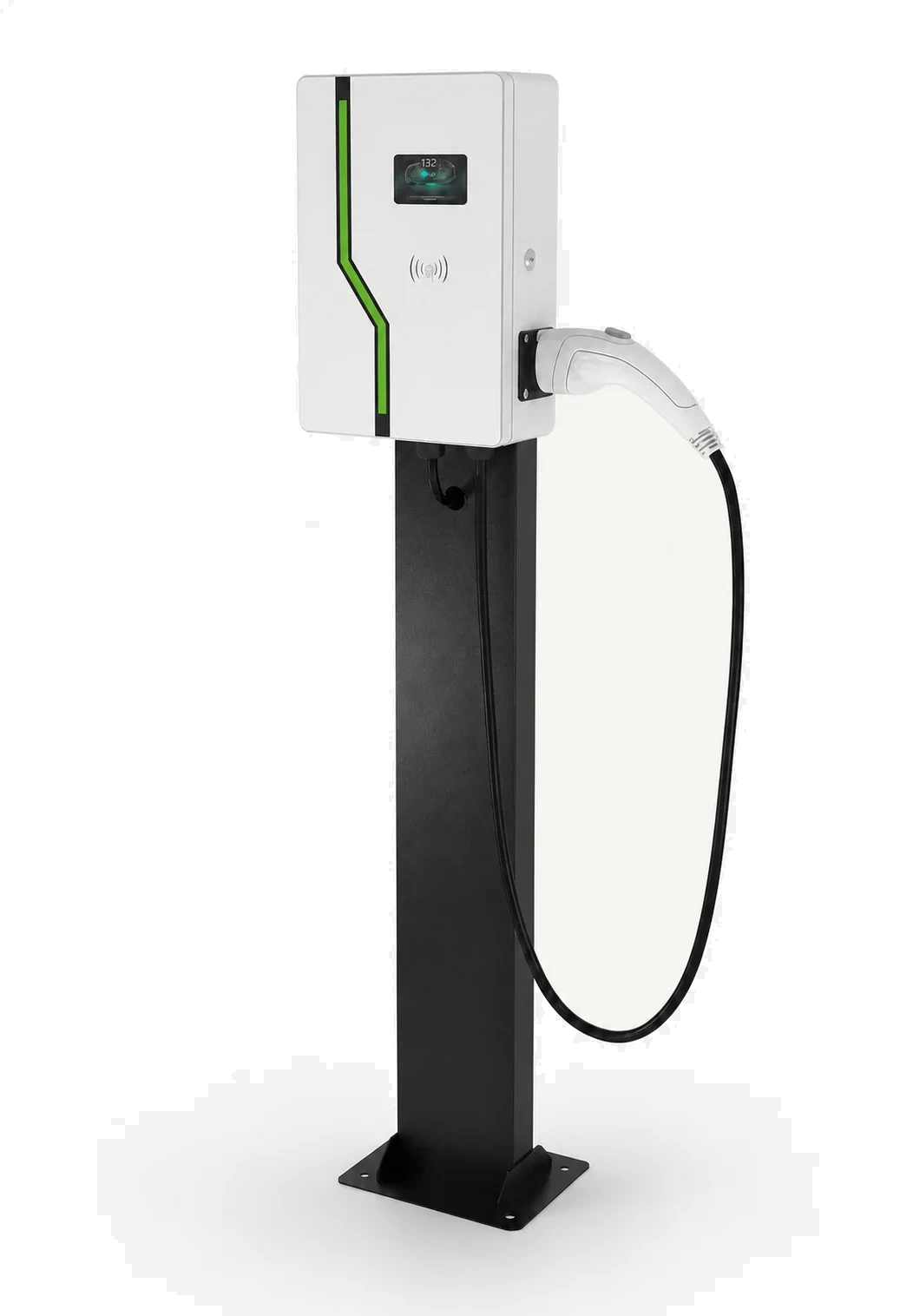

INTEK-AC Series Commercial AC EV Chargers
3.5–22 kW commercial ac ev chargers for Residential parking, Workplaces and offices, Hotels and retail destinations. Compare models, connectors, payment, OCPP and project requirements.
Rated output3.5–22 kW
ApplicationsResidential parking · Workplaces and offices
Output voltage3.5–22 kW
Product familyINTEK-AC Series
Applications
Where this charger range fits
Wall-mounted or pedestal AC charging for homes, workplaces, hotels, residential parking and destination charging.
- Residential parking
- Workplaces and offices
- Hotels and retail destinations
- Fleet overnight charging
Confirm these items before quotation
- Confirm voltage, available capacity, transformer margin and any planned PV or battery connection.
- List vehicle voltage, connector, daily mileage, arrival pattern and the time available for charging.
- Confirm public or private access, payment, OCPP platform, API, branding and service responsibilities.
- Technical values follow the supplied product catalog. Ambiguous fields are marked for confirmation rather than guessed.
Applications
Charging solutions by operating site.
Match the charger family to how vehicles arrive, how long they stay and how the site will operate the equipment.
Workplaces and offices
Use AC when vehicles remain parked for several hours.
Hotels and retail destinations
Homes, workplaces, hotels and long-stay parking
Fleet overnight charging
Use AC when vehicles remain parked for several hours.
Operations & integration
Payment, platform and project configuration
Select the operating method together with the hardware, not after installation.
- QR or POS payment versions can be configured. MAINERAY can assist with local operator-platform connection and project API integration.
- Appearance and configuration customization
- 1–2 year warranty by model, configuration and contract
- Remote after-sales support; project-specific on-site service when required
Technical data
INTEK-AC Series · 3.5–22 kW
Technical values follow the supplied product catalog. Ambiguous fields are marked for confirmation rather than guessed.
| Rated output | 3.5 / 7 / 11 / 22 kW |
|---|---|
| Input / output | 220 / 380 Vac ±20%, 50 / 60 Hz |
| Rated current | 16 / 32 A |
| Connector | 1 connector; selected variants support 1 / 2 |
| Communication | RJ45 / 4G |
| Display | 4.3-inch screen |
| Protection | IP54 |
| Operating temperature | -20°C to 50°C |
| Storage temperature | -20°C to 70°C |
| Cable length | 3.5 m |
| Installation | Wall-mounted or pedestal |
Operations & integration3.5–22 kWConnectors: 1 connector; selected variants support 1 / 2 · 220 / 380 Vac ±20%, 50 / 60 HzQR or POS payment versions can be configured. MAINERAY can assist with local operator-platform connection and project API integration.Appearance and configuration customization
FAQ
Questions to resolve before specifying this charger
Which sites are a good fit for INTEK-AC Series?
This 3.5–22 kW family is positioned for Residential parking, Workplaces and offices, Hotels and retail destinations, Fleet overnight charging. Final sizing depends on vehicle demand, dwell time, simultaneous charging and available site power.
Which connectors, payment methods and platforms are available?
Connector, card, QR or POS payment and platform options are configured by project. Confirm the destination market, vehicle standard, OCPP or API requirement and payment route before quotation.
How are certification and warranty confirmed?
The applicable certificate holder, model scope, delivered branding and documentation are matched to the final configuration. Warranty is normally 1–2 years depending on model, configuration and contract.
MAINERAY
Documentation follows the delivered configuration.
Technical values follow the supplied product catalog. Ambiguous fields are marked for confirmation rather than guessed.
Final branding, certification scope, platform integration and warranty are confirmed for each order.
Request configuration & quotation →Products
